R.Meurer 21-12-20 R.D. 1 2 4 5 3 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 Ignition coil Starter motor Light switch Head light G L Y LO HI Starter relay Starter switch BAT Choke Regulator/ Rectifier Main switch Fuse LOCK OFF ON CHECK B/W B R Br Gy Stop switch (optional) C.D.I. unit Spark plug Generator Hi Beam indicator Meter light Tail/Break light Fuel meter Fuel sensor Flasher relay Turn switch Ch Br/W Dg L N R Turn front left Turn front right Turn indicator Turn rear right Turn rear left Horn Horn switch Front Rear Brake switches Oil sensor Oil indicator

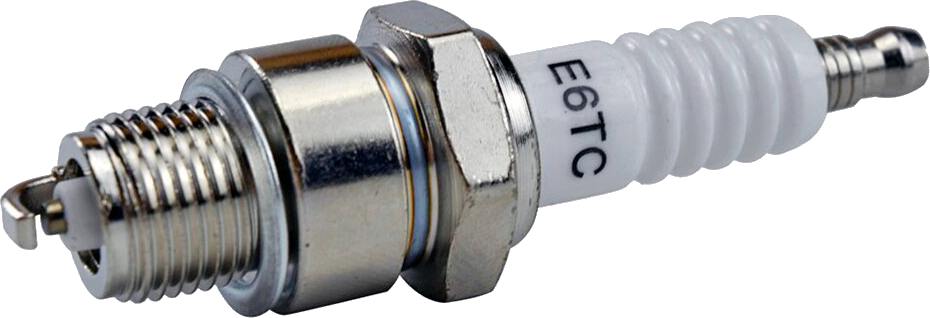

1 Spark plug

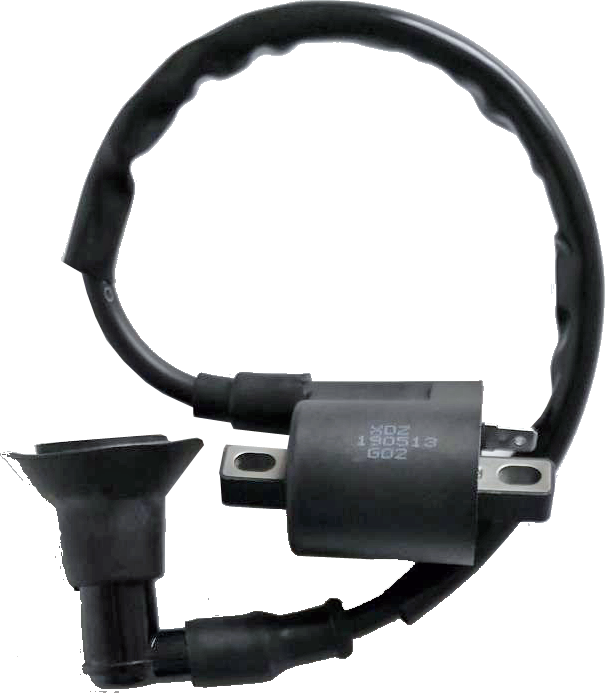

2 Ignition coil

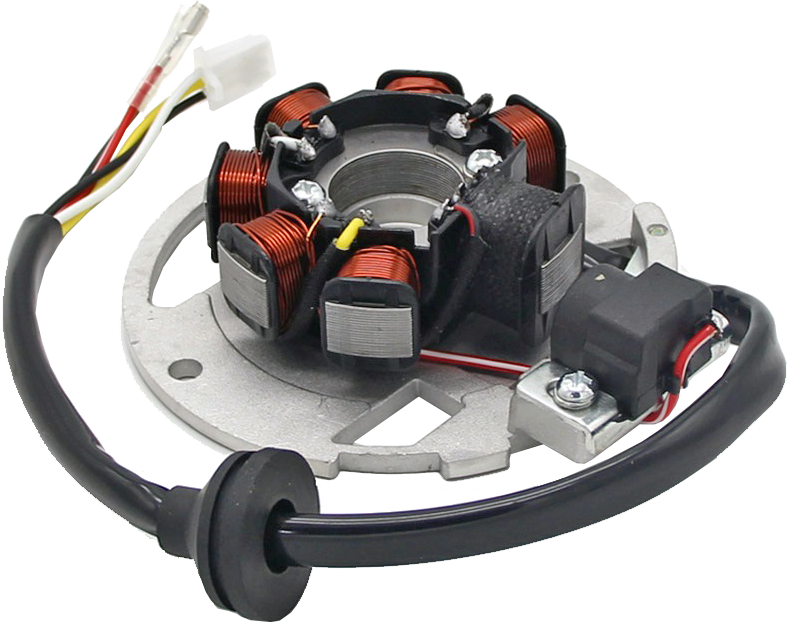

3 Generator

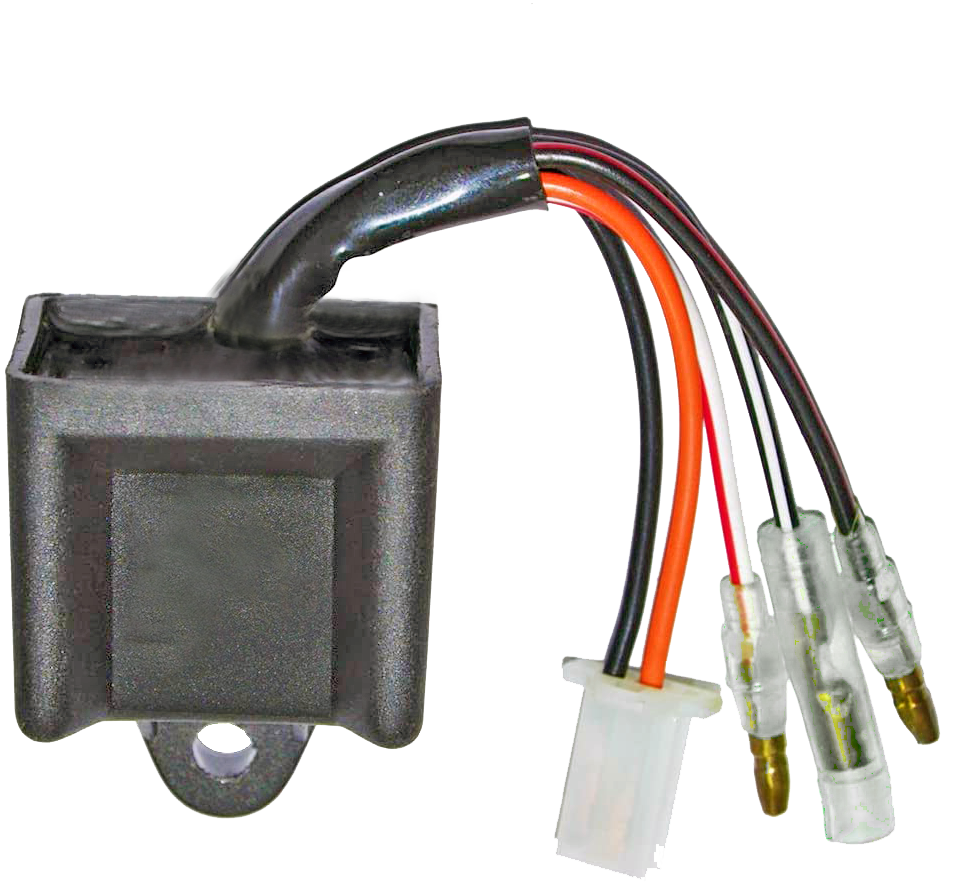

4 C.D.I. unit

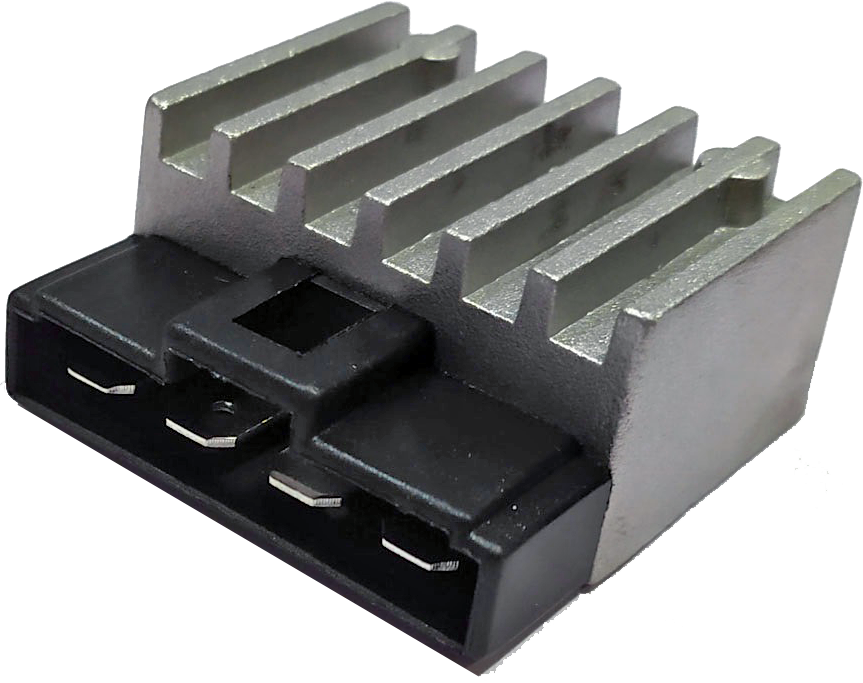

5 Regulator

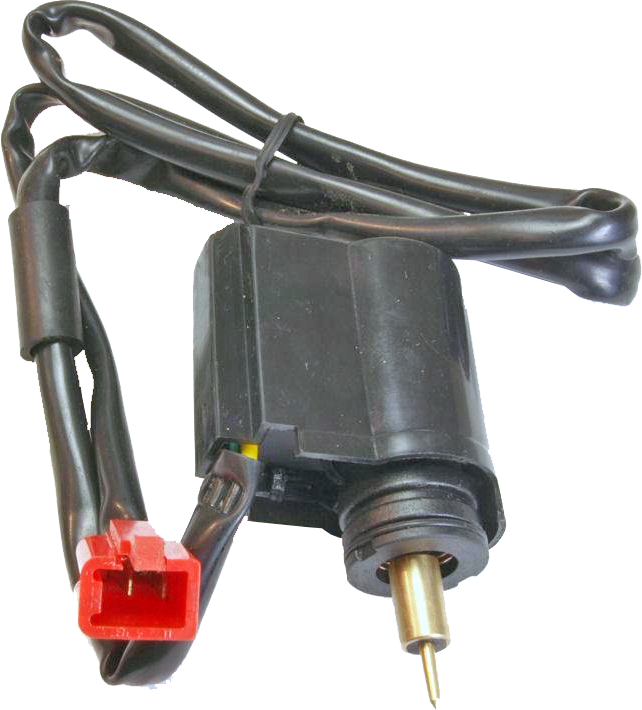

6 Choke unit

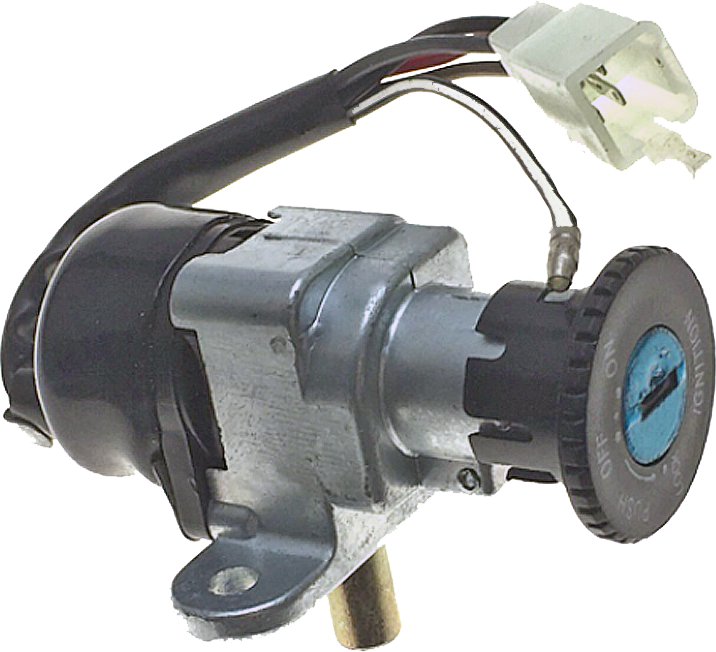

7 Main switch

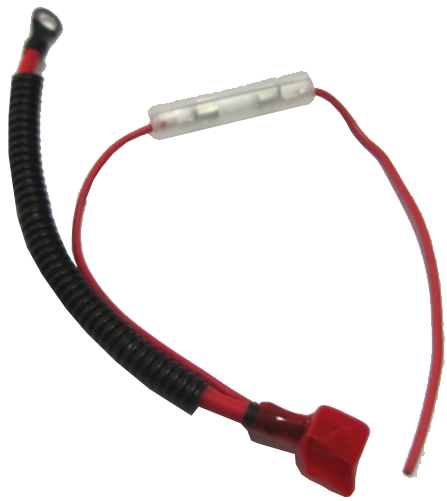

8 Fuse

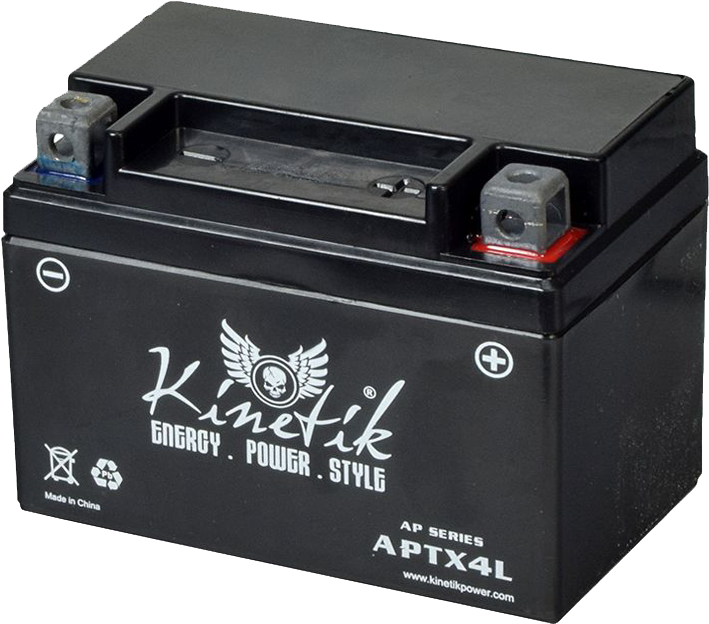

9 Battery
10 Sarter switch

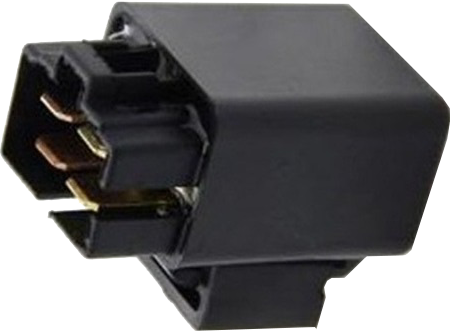

11 Starter relay

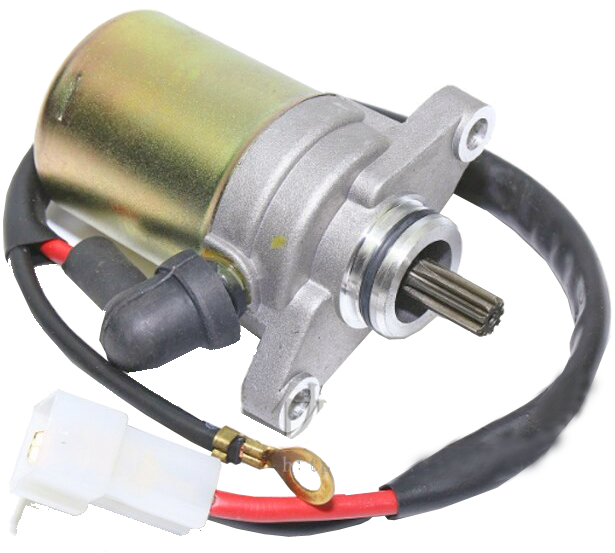

12 Starter motor
13 Light switch

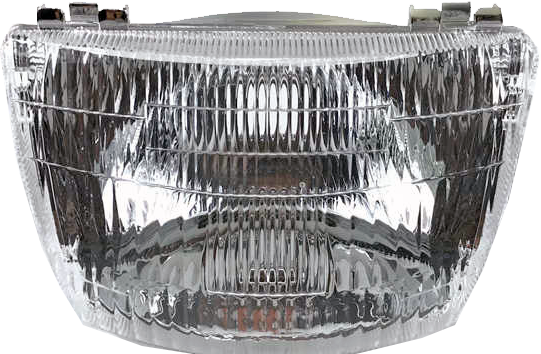

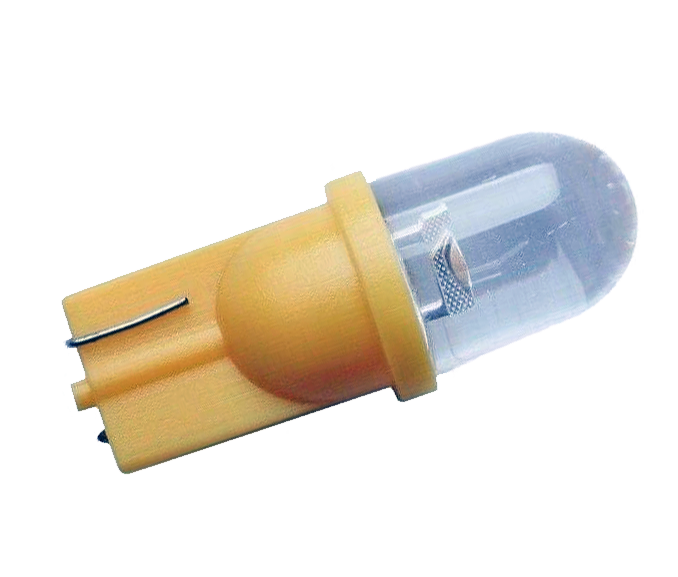

14 Head light
15 Hi Beam LED
16 Meter LED

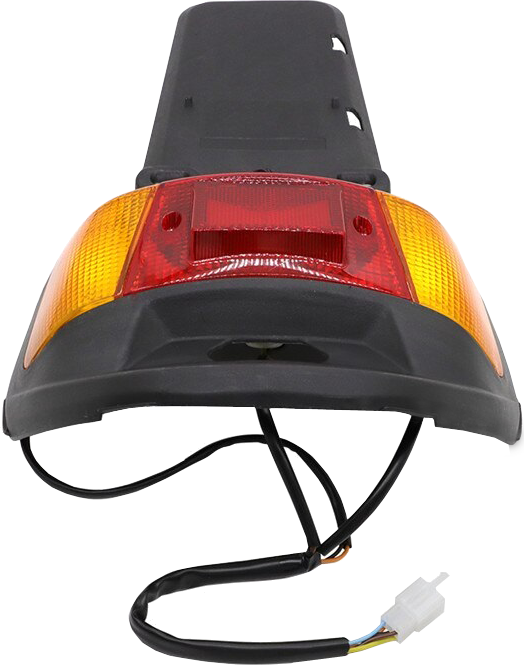

17 Tail break light

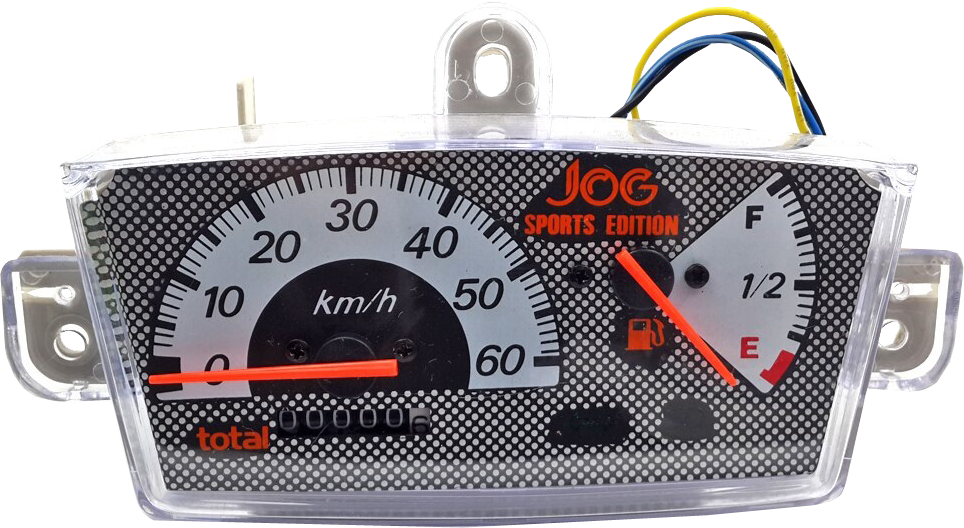

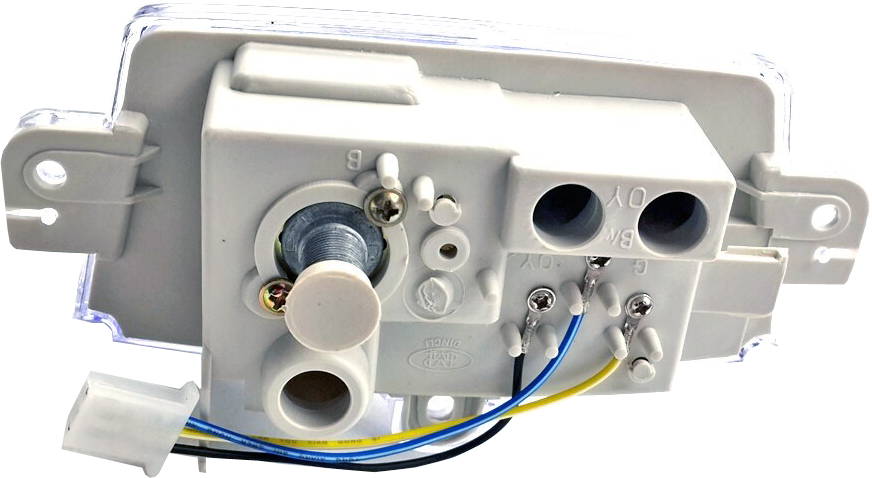

18 Fuel meter

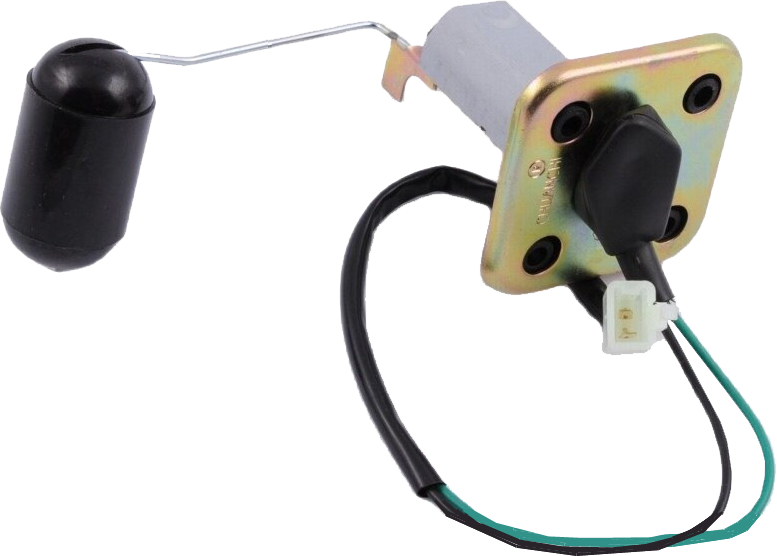

19 Fuel sensor

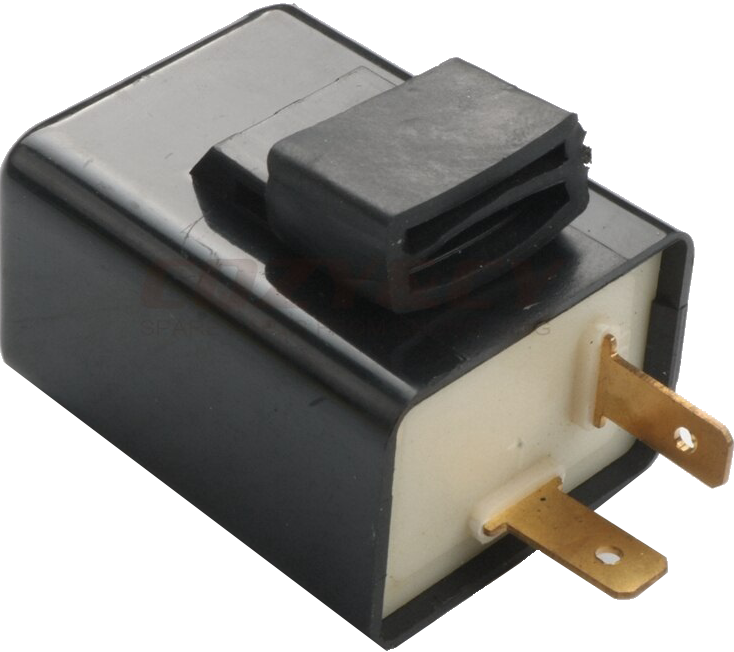

20 Flasher relay
21 Turn switch

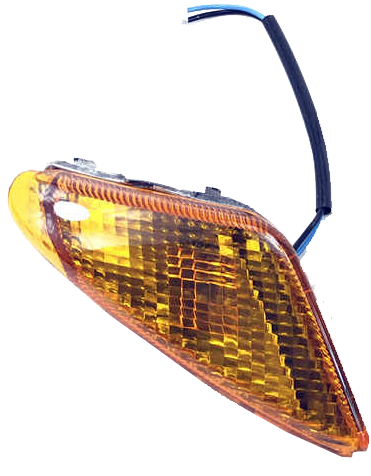

22 Flash left/front
23 Flash left/rear
24 Turn LED

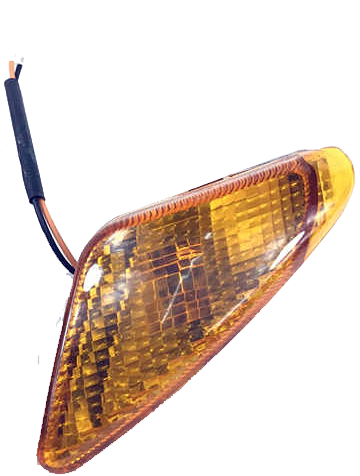

25 Flash right/front
26 Flash right/rear

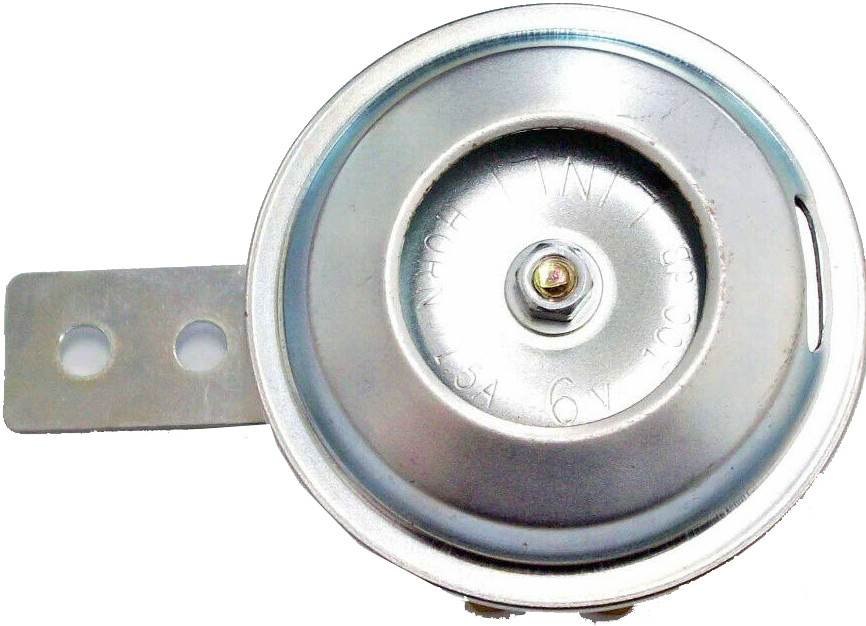

27 Horn
28 Horn switch

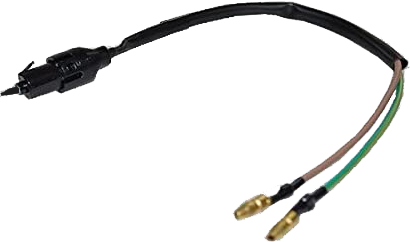

29 Break sw front
30 Break sw rear

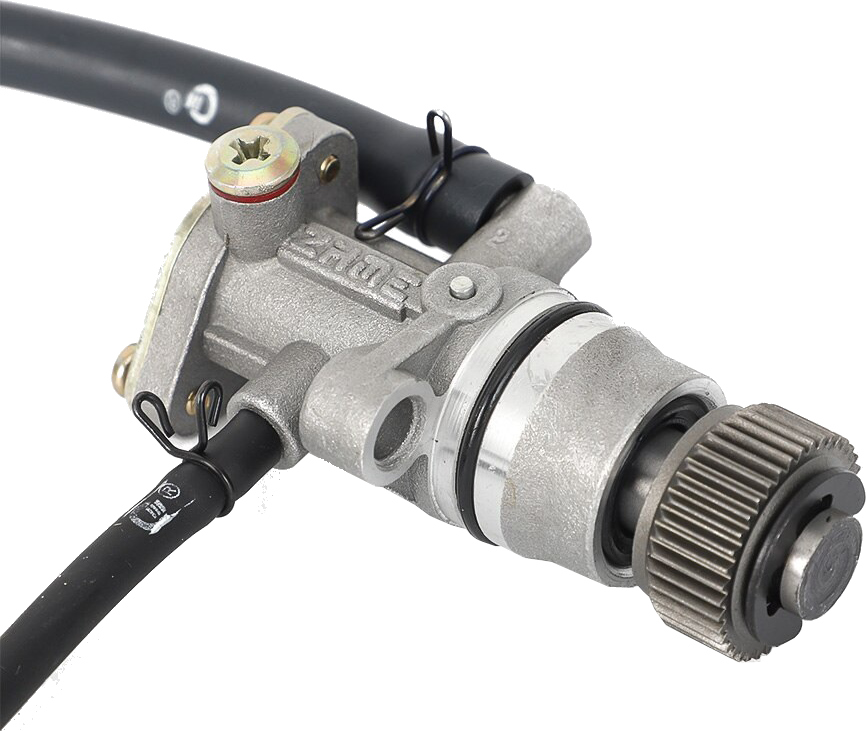

31 Oil sensor
32 Oil LED
33 Stop switch
