Die Frequenz einer Oszillatorschaltung variiert linear mit der Eingangsspannung (Hz / V). Aus diesem Grund muss eine (V/Okt) Steuerspannung mittels eines Anti log amp linearisiert werden.
The frequency of an oscillator circuit varies linearly with the input voltage (Hz/V). Because of this, a (V/Oct) control voltage must be linearised by using an anti log amp (exponential function to base 10)

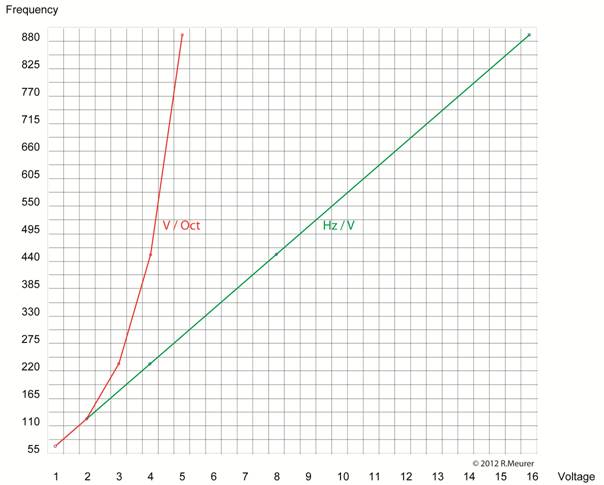

Hz/Volt Freq/Cv lin.
|
V/Oct Freq/Cv log.
|
R.Meurer 1988
